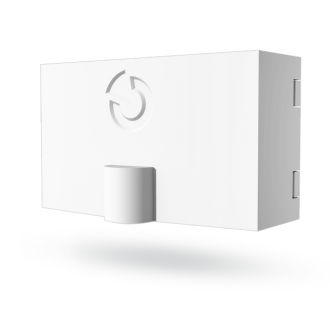

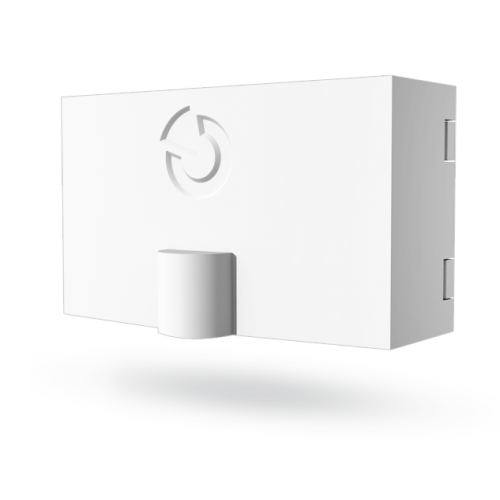

JA-111I Universal LED indicator RGB 12V
- Brand: Jablotron
- Product Code: JA-111I
- Availability: In Stock
|Power||12 V (9 ... 15 V)|
|Current consumption in standby (LED on / off)||5 mA / 0 mA|
|Current consumption for choice of cable||5 mA|
|Dimensions||62 x 36 x 27 mm|
|Environment according to||EN 50131-1. general indoor|
|Operating temperature range||-10 to + 40 ° C|
Indicates activations of a section or output activations by multi-colored LEDs (red, green, blue and yellow).

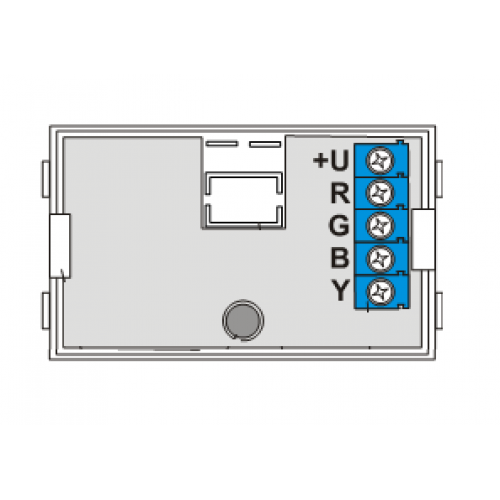

Optical indication of status. The colour of indication can be determined by connecting its terminals. The indicator also enables the dual-colour indication of an associated output module (e.g. red / green).
