JA-156E-GR Wireless Touch keypad with RFID reader Grey
- Brand::Jablotron
- Product Code: JA-156E-GR
- Availability: In Stock
| Type of control device (ACE) | type B |
|---|---|
| Power supply | External power supply from adapter +12 V DC (8–15 V) type A (according to EN 50131-6) Please note: Battery is not included. |
| Backup battery | Li-Ion Polymer battery |
| Voltage/capacity | 3.7 V/2500 mAh, recommended type BAT-3V7-2500 |
| Maximum capacity | 2520 mAh |
| Minimum capacity | 2500 mAh |
| Typical backup battery lifetime | >48 hrs |
| LowBatt state | 3.5 V |
| Maximum charging time to reach 80% of capacity | 6–7 hrs |
| Nominal current consumption (display OFF) | 58 mA |
| Maximal current consumption (display ON) | 280 mA |
| Communication band | 868.1 MHz, JABLOTRON protocol |
| Maximum radio-frequency power (ERP) | <25 mW |
| Communication range | approx. 200 m (open area) |
| RFID frequency | 125 kHz |
| Maximum RFID magnetic field strength | -5.4 dBμA/m (measured at 10 m) |
| Dimensions | 95 x 183 x 30 mm |
| Weight (without battery) | 258 g |
| Classification | Security grade 2/Environmental class I (According to EN 50131-1) |
| Environment | Indoor |
| Operating temperature range | 0 °C to +40 °C |
| Average operational humidity | 75% RH, w/o condensation |
| Certification body | Trezor Test s.r.o. (nr. 3025) |
| In compliance with | ETSI EN 300 220-1, -2, ETSI EN 300 330, EN 50130-4, EN 55032, EN IEC 62368-1, EN IEC 63000, EN 50131-1, EN 50131-3, EN 50131-5-3, EN 50131-6 |
| Can be operated according to | ERC REC 70-03 |
| Recommended screw | 4 x ø 3.5 x 40 mm (countersunk head) |

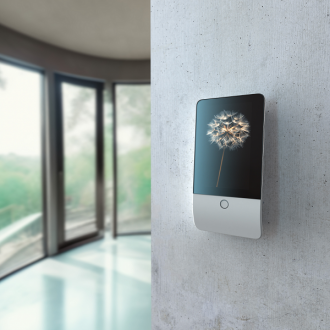

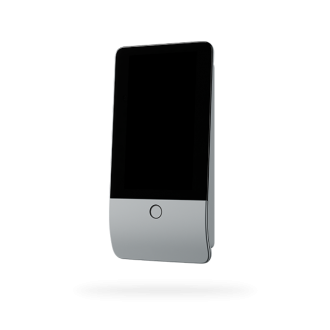

JABLOTRON NATUS JA-156E-GR Wireless Touchscreen touch keypad has a timeless and minimalist design, they are set to become the design centerpiece of every interior.
User comfort is assured by a 5 inch LCD touchscreen, and by a user interface that is unified with the MyJABLOTRON app.
The JABLOTRON Natus touch keypad, with its unique design and attributes, will be appreciated by all.
Available in three color variants: white, grey, and anthracite.
