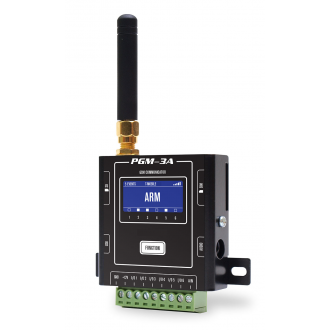

PGM-3A Pacific GSM Module/Communicator
- Brand: Pacific GSM
- Product Code: PGM3-A
- Availability: In Stock
The new version of the popular miniature GSM communicator / dialer is here - a simple, intuitive and powerful.
The PGM3A GSM communicator / dialer offers six universal inputs / outputs, one analog input, universal audio output and input, OLED display, microSD card slot for recording history of events and PC configuration software for easy programming via USB cable.
A wide range of settings makes this GSM communicator powerful and universal use.
PGM3A communicator enable coverage of events and control devices via GSM mobile phone network and therefore virtually unlimited distance, simply from any type of mobile phone.
GSM Controller PGM-3A is perfect tool to remotely monitor and control devices and systems to detect faults and malfunctions in seconds to minimise downtime and maximise services efficient.
Switching ON/OFF any proces or device remontely become easy and affordable with our GSM Switch PGM-3A ( lights, generators, pumps, gates, heating, air-conditioning, appliances,machinery etc)
- Remote control from a mobile phone.
- Remote maintenance, warnings, alarms.
- Irrigation systems.
- Remote system monitoring.
- Plant maintenance.
- Security systems
- Alert, panic dialler
- 6x adjustable clamp as universal input / output
- 1x analog input measuring 0 - 30V DC (10mV resolution)
- OLED information display with a resolution of 128x64px
- Slot for SD card to store event history (max. 8GB)
- Universal audio input / output jack
- Micro USB connector for setup via PC
- Slot for SIM card of any GSM operator
- 12V DC power supply (10 - 14V)
- Current consumption 20 mA
- Control by SMS
- Control by dialing from up to 6 tel. numbers
- Dimensions: 48 × 48 × 15 mm (H x W x D)
- Metal enclosure for better protection
- GSM / GPRS Quad Band 850/900/1800/1900 MHz

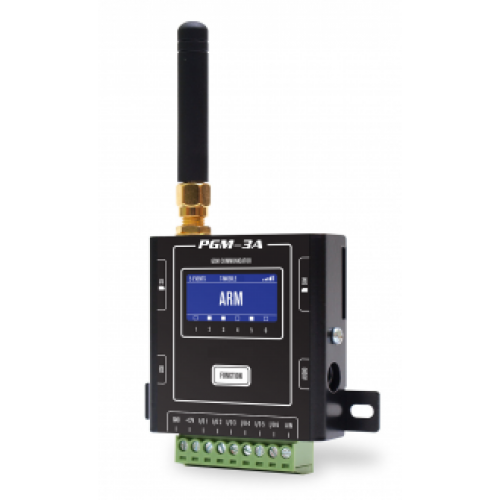

PGM-3A GSM communicator
