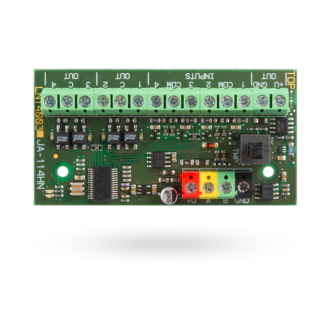

JA-114HN BUS universal input and output module - 4 inputs and 4 outputs
- Brand::Jablotron
- Product Code: JA-114HN
- Availability: In Stock
| Power: via the control panel bus | 12 V (9…15 V) |
|---|---|
| Backup mode consumption | 25 mA + consumption of connected devices |
| Current consumption (maximum) for cable selection | 25 mA + consumption of connected devices |
| Maximum current from an output +U (electronic fuse) | 200 mA |
| Maximum current / voltage switched by each output | 500 mA / 38 V |
| Max. measured resistance at an input | 20 kOhm |
| Max. length of supply lines of the inputs | 100m |
| Dimensions | 77 x 40 x 31 mm |
| Classification | security level 2, ACE type B in accordance with: EN 50131-1, EN 50131-3 |
| Environment | II. indoor, general in accordance with EN 50131-1 |
| Operating temperature range | -10 °C to +40 °C |
| It also meets the requirements of | EN 50130-4, EN 55022 |
The module is a component of the JABLOTRON 100 system and provides 4 inputs and 4 outputs
Each input is programmable independently via the F-Link software USB or remotely or from My Company web self service.
Settings option is NO, NC, pulse mode, balanced, delayed, and the internal tamper if installed in to JA-190PL box
