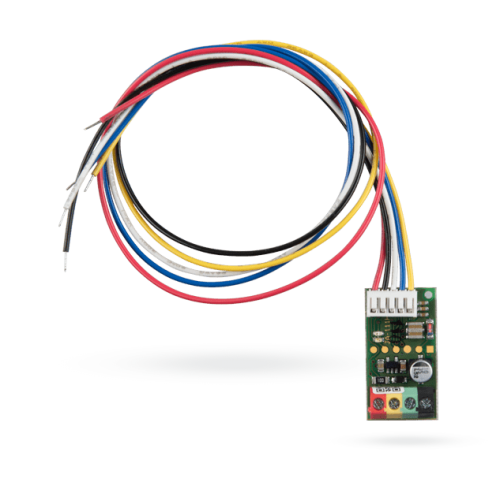

JA-111H TRB Bus module interface for wire detector

0 reviews Write a review

Brand::Jablotron
Product Code: JA-111H TRB
Availability: In Stock

Power	from control panel bus 12 V DC (8…15 V)
Quiescent current consumption	5.2 mA (+ consumption of connected devices, all inputs connected to GND)
Maximal current consumption	11 mA (+ consumption of connected devices)
Maximum allowed current of the connected detector	50 mA
Type of control device (ACE)	type B
Dimensions	18.1 x 31.5 x 12 mm
Wire length	300 mm (cannot be extended)
Weight	8 g

ClassificationSecurity grade 3 / environmental class II (according to EN 50131-1). Valid only if built-in to Security grade 3 or higher certified housingEnvironmentindoor generalOperating temperature range-10 °C to +40 °CAverage humidity75% RH, non-condensationCertification bodyTrezor Test s.r.o. (no. 3025), Kiwa Nederland b.v.Complies withEN 55032, EN 50130-4, EN 50131-3, T 031, EN IEC 63000

JA-111H TRB Bus module interface for wire detector

The JA-111H TRB module is designed for the connection of any wired detector (with contact or impulse outputs) to the JABLOTRON 100+ system and provides it with a power supply.

Product description

This built-in module can be directly integrated into the detector.

One input of the module has a fixed Tamper signal, the second input reports an alarm signal and the third input is used to report a fault of a connected device or to report a special “Masking” signal.
The module can also be used for the connection of a CT-01 roller blind detector.

The module can be used to control programmable PG outputs.

It supports setting of a minimum activation time for alarm triggering (0.1 s – 300 s).

The detector features status as well as impulse activation.

The module is a device of the JABLOTRON 100+ system, is addressable and occupies one position in the system.
