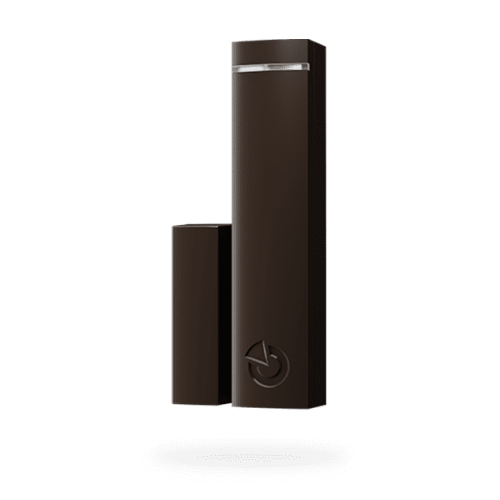

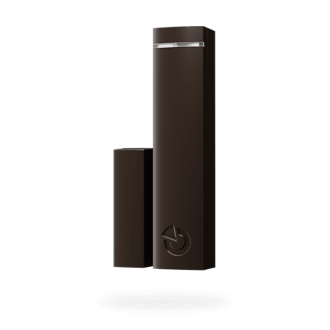

Wireless magnetic detector with 2 universal inputs - brown
- Brand::Jablotron
- Product Code: JA-150MB
- Availability: In Stock
| Power | 1x alkaline battery type LR6 (AA) 1.5 V Please note: Battery is not included |
| Typical battery lifetime | about 2 years |
| Communication band | 868.1 MHz, JABLOTRON protocol |
| RF range | approx. 300 m (open area) |
| The maximum length of cable for external detectors | 3 m |
| Maximum radio-frequency power | 10 mW |
| Dimensions | 109 x 24 x 22 mm |
| Classification | Grade 2 |
| According to | EN 50131-1, EN 50131-3, EN 50131-2-6, EN 50131-5-3 |
| Operational environment | EN 50131-1 II. Indoor general |
| Operational temperature range | -10 °C to +40 °C |
| Also complies with | ETSI EN 300220, EN 50130-4, EN 55022, EN 50950-1 |
| Can be operated according to | ERC REC 70-03 |
Overview
The JA-150MB is a wireless magnetic detector with two universal inputs (brown) for the Jablotron 100 / 100+ system, available from Pacific GSM for New Zealand projects.
It is a magnetic detector with two configurable independent inputs. The detector is also designed to detect the handling of roller blinds, if it is equipped with a CT-01 roller detector.
It is battery powered and also supports two configurable wired inputs.
Key features
- Small movements are filtered out so that wind blasts do not cause false alarms.
- It occupies two separate enrollment addresses in the control panel.
- The product can be installed by a certified technician with a valid certificate issued by an authorized distributor.
Ideal for
Brown-finish installations where a compact magnetic contact is preferred (Detectors, Perimeter protection).
Installation notes
Install only by a trained technician with a valid Jablotron certificate. See the English installation manual in Downloads for wiring, enrolment, and mounting details.
