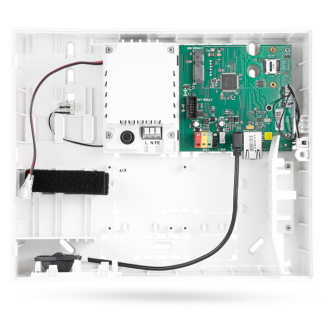

JA-103K Control panel with LAN communicator

JA-103K Control panel with LAN communicator

0 reviews Write a review

Brand::Jablotron
Product Code: JA-103K
Availability: In Stock

Power supply	110 - 230 V/50 - 60 Hz
Back-up battery	12 V, 2.6 Ah (not included in the product package!)
Maximum battery charging time	72 hours
Max. continuous consumption from the control panel	1000 mA
Max. continuous consumption for 12 hour back up	115 mA without LAN 88 mA with active LAN (with a 2.6 Ah battery)
Max. number of peripheral devices	50
LAN communicator	Ethernet interface, 10/100BASE-T
Dimensions	268 × 225 × 83 mm
Weight with B.Bat/without B.Bat	1809 g/919 g
Event history	approx. 7 million latest events, incl. date and time
Power supply	A (EN 50131-6)
Classification	Security level 2/environment class II (in accordance with ČSN EN 50131-1)
Operating temperature range	-10 to +40 °C
Average operating humidity	75 % RH, without condensation
Compliant with	EN 50131-1 ed. 2+A1+A2, EN 50131-3, EN 50131-5-3A1, EN 50131-6 ed. 2+A, EN 50136-1, EN 50136-2, EN 50581
Radio operating frequency (with the JA-11xR module)	868.1 MHz
Radio emissions	ETSI EN 300 220-1-2 (module R), ETSI EN 301 419-1, ETSI EN 301 511 (GSM)
EMC	EN 50130-4 ed.2+A1, EN 55032 ed.2, ETSI EN 301 489-7
Electric safety	EN 62368-1+A11
Operation conditions	VO-R/10, VO-R/1
Certification body	Trezor Test s.r.o. (no. 3025)
Caller's identification (CLIP)	ETSI EN 300 089

Control panel power supply	~ 110 – 230 V/50 – 60 Hz, max. 0.28 A with fuse F1.6 A/250 V, Protection class II
Back-up battery	12 V; 2.6 Ah (lead gel)
Maximum battery charging time	48 h
BUS voltage (red - black)	12.0 to 13.8 V
Maximum continuous current consumption from the control panel	1000 mA
Max. continuous current consumption for back-up 12 hours	Without GSM communicator	LAN – OFF: 115 mA LAN – ON: 88 mA
	With GSM communicator	LAN – OFF: 80 mA LAN – ON: 53 mA
Max. continuous current consumption for back-up 24 hours	Without GSM communicator	LAN OFF: 21 mA
	With GSM communicator	LAN – OFF: 17 mA
Maximum number of devices	50
LAN communicator	Ethernet interface, 10/100BASE
Dimensions	268 x 225 x 83 mm
Weight with/without AKU	1844 g/970 g
Reaction to invalid code entry	Alarm after 10 wrong code entries
Event memory	Approx. 7 million latest events, including date and time
Power supply unit	Type A according to EN 50131-6 T 031 note: In case of a main power failure is the system backed up for 24 hours and at the same time is a failure report sent to the ARC.
GSM communicator (2G)	850 / 900 / 1800 / 1900 MHz
Classification	Security grade 2 according to EN 50131-1
Operational environment	Environmental class II (indoor general) according to EN 50131-1
Operational temperature range	-10 °C to +40 °C
Average operational humidity	75 % RH, non-condensing
Complies with	EN 50131-1 ed. 2+A1+A2, EN 50131-3, EN 50131-5-3+A1, EN 50131-6 ed. 2+A1, EN 50131-10, EN 50136-1, EN 50136-2, EN 50581
Radio operating frequency (with the JA 11xR module)	868.1 MHz
Radio emissions	ETSI EN 300 220-1,-2 (module R), ETSI EN 301 419-1, ETSI EN 301 511 (GSM)
EMC	EN 50130-4 ed. 2+A1, EN 55032 ed. 2, ETSI EN 301 489-7
Safety conformity	EN 62368-1+A11
Caller identification (CLIP)	ETSI EN 300 089
Operational conditions	ERC REC 70-03
Certification body	Trezor Test s.r.o. (no. 3025)

The JA-103K control panel offers:

up to 50 bus devices
up to 50 user codes
up to 8 sections
up to 32 programmable PG outputs
20 mutually independent calendar events
SMS and voice reports from the system to up to 8 users
5 ARCs can be set
5 selectable protocols for an ARC

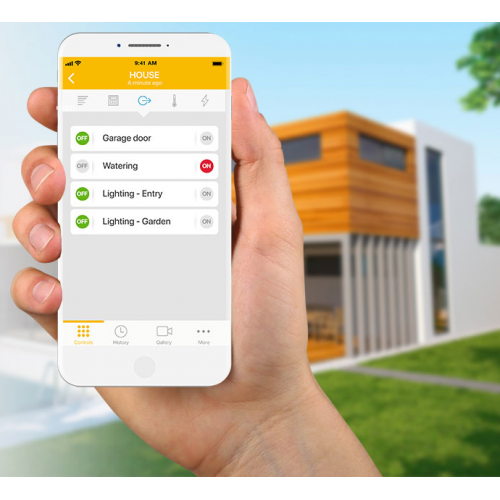

The control panel has an integrated LAN communicator that enables data communication with an ARC and the JABLOTRON CLOUD, which enables full use of the MyJABLOTRON application, also allow full remote configuration of control panel via F-link software

The control panel contains:

1 terminal for bus connection
1 connector for LAN

The required settings of the system are programmed through the F-Link software.

The control panel can only be installed by a trained installer with a valid Jablotron certificate.
