JA-188J Wireless panic button

0 reviews Write a review

Voltage

Lithium battery type CR14250 (1/2 AA) 3.6V/1.2 Ah
Please note: Battery is not included

Typical battery li

Qty

Voltage	Lithium battery type CR14250 (1/2 AA) 3.6V/1.2 Ah Please note: Battery is not included
Typical battery lifetime	approximately 3 years (20 daily activations)
Communication band	868.1 MHz, Jablotron protocol
Communication range	approx. 300 metres (open area)
Dimensions, weight	80 x 80 x 29 mm, 60 g
Operational environment according to	EN 50131-1 class II. Indoor general
Operational temperature range	-10 °C to + 40 °C
Complies with EN 50131-1, EN 50131-5-3, EN 50134-2	grade 2
Complies with	ETSI EN 300220, EN 50130-4, EN 55022, EN 60950-1
Can be operated according to	ERC REC 70-03

Overview

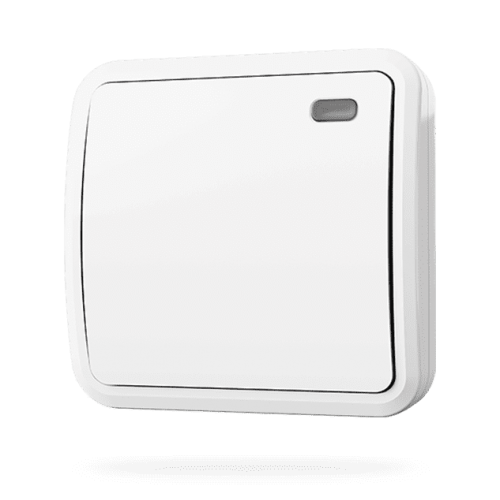

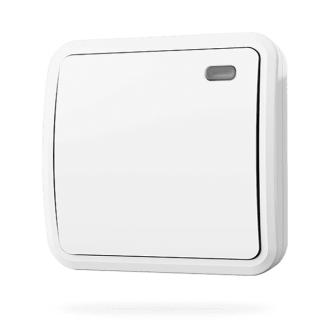

The RC-188J is mainly used as a wireless panic or emergency button. Available through Pacific GSM for New Zealand Jablotron 100+ projects.

It is designed to be a remote control for setting/unsetting an alarm system or remotely controlling other appliances.

It provides tamper contacts and monitors the voltage of its battery.
The system reaction to button activation is optional .
The basic reaction is a panic alarm or setting/unsetting the system (selectable).
Other reactions can be chosen in control panel service mode.

Suited to Jablotron 100+ installations needing a wireless panic button (Control devices, Emergency devices).

Have a certified installer mount the device, enrol it in F-Link, and follow the English installation manual included with these assets.
