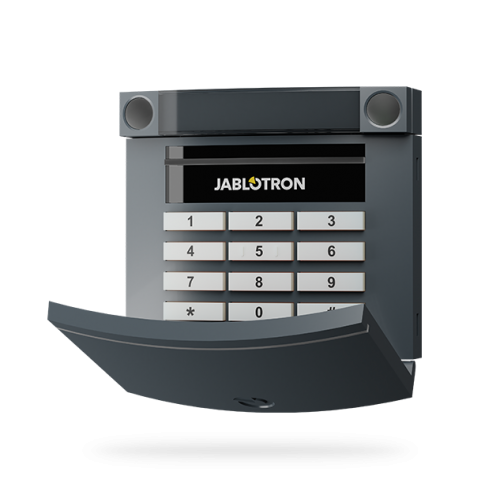

JA-153E-AN Wirelss access module with RFID and keypad Anthracite
- Brand::Jablotron
- Product Code: JA-153E-AN
- Availability: In Stock
| Power | 2 x alkaline batteries AA (LR6) 1.5 V Please note: Batteries are not included |
|---|---|
| Typical life time | 1 - 2 year(s) according to the settings |
| Communication band | 868.1 MHz, JABLOTRON protocol |
| Maximum radio-frequency power (ERP) | 16 mW |
| Communication range | 200 m (open area) |
| Power input from external supply | 0.5 W |
| RFID frequency | 125 kHz |
| Dimensions | 102 x 75 x 33 mm |
| Weight | 200 g |
| Classification | Grade II |
| According to | EN 50131-1, EN 50131-3, EN 50131-5-3 |
| Operational environment | EN 50131-1 II. Indoor general |
| Operating temperature range | -10 °C to +40 °C |
| Also complies with | ETSI EN 300 330, ETSI EN 300 220, EN 50130-4, EN 55022, EN 60950-1 |
| Can be operated according to | ERC REC 70-03 |
The JA-153E-AH is a two-way wireless keypad module with RFID reader Its modular architecture enables users to create a combination whose size of installation perfectly meets their needs, to operate a security system,access control, or PG output. Contains one operating segment and, if needed, can be equipped with up to 20 JA-192E control segments
The unit allows simple system control using interlocking segments.
It features Smart Radio Wake-up (SRW) which reacts to, for example, a wireless door detector being triggered and effects the automatic termination of sleep mode in a set system during the entrance delay.
The module is powered by alkaline batteries. The module can be powered from an external 12V DC power supply via the DE 06-12 power supply. If the mains power is cut off, the module will work from the batteries.
The module has an input terminal for external door detector connection
The module is addressable and occupies one alarm system position.
