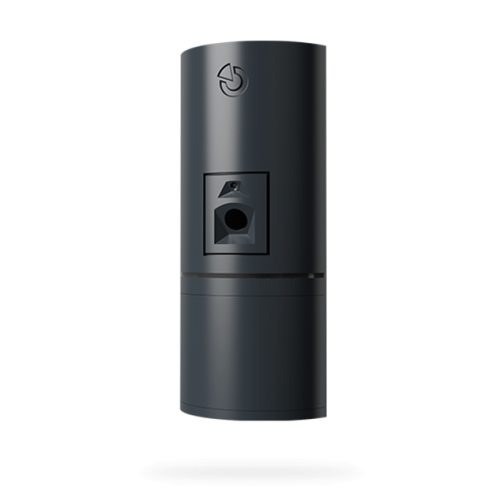

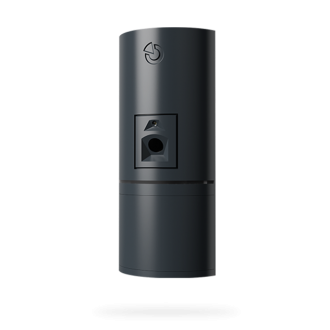

JA-122PC-AN Bus combined PIR motion detector with 90° photoverification camera - anthracite
- Product Code: JA-122PC-AN
- Availability: In Stock
| Power | 12 V BUS (8... 15 V) |
|---|---|
| - nominal for the backup supply calculation | 5 mA |
| - maximum for cable choice | 250 mA (high flash intensity) |
| Recommended installation height | 2,5 m above floor level |
| PIR detection angle/detection coverage | 90/12 m |
| Horizontal camera capture angle | 90 |
| Range of the flash | max. 3 meters |
| Camera resolution | LQ 320x240; HQ 640x480 pixels |
| Photo size | LQ/HQ 5-20kB/5-64kB |
| Typical (LQ) photo transmission time to the control | up to 20 sec. (10 sec.) panel |
| Ideal (HQ) photo transmission time to the control | up to 130 sec. (60 sec.) panel |
| Typical photo transfer time to server | 15 s/GPRS; 2 s/LAN |
| Dimensions, weight | 150 x 65 x 44 mm, 125 g |
| Classification | Security grade 2/Environmental class II (EN 50131-1) |
Overview
The JA-122PC-AN this device is a component of the Jablotron security system. It serves for the detection of human movement in building interiors and visual alarm confirmation. The camera takes colour photos with a resolution of up to 640x480 pixels.
Available from Pacific GSM on pacificgsm.com as a genuine Jablotron 100 / 100+ product.
Key features
- The photo-verification can be used only after registration of the system to MyJABLOTRON or with subsequent ARC service.
- Designed for the Jablotron 100 / 100+ bus or wireless ecosystem
- Official Jablotron part code JA-122PC-AN
Ideal for
Homes and small commercial sites
Choose the JA-122PC-AN when you need reliable Jablotron 100 coverage and straightforward integration with panels and peripherals stocked by Pacific GSM.
Documentation
The English installation manual is available under Downloads on this product page when supplied by Jablotron.
