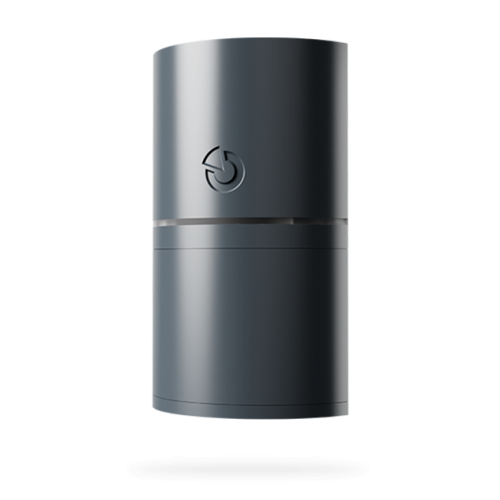

JA-112P-AN Bus PIR motion detector - anthracite
- Product Code: JA-112P-AN
- Availability: In Stock
| Compatible with | F-Link 2.0.0 and higher |
|---|---|
| Power | from the control panel BUS 12 V (9 ... 15 V) |
| Current consumption in standby mode | 5 mA |
| Current consumption for cable choice | 16 mA (maximum) |
| Recommended installation height | 2.5 m above the floor |
| Detection angle / detection range | 90 °/12 m |
| Dimensions | 62 x 110 x 40 mm |
| Weight | 77 g |
| Classification | Grade 2/Environmental class II (According to EN 50131-1) |
| Operational environment | Indoor general |
| Operational temperature range | -10 °C to +40 °C |
| Average operational immunity | 75 % RH, non-condensing |
| Certification body | Trezor Test s.r.o. (no. 3025) |
| Complies with | 2+A1, EN 55032, EN 50581 |
Overview
The JA-112P-AN — the product is a bus system device for the Jablotron 100+. It is built to detect human body motion inside buildings. Its guaranteed detection coverage is 90 °/12 m. The detector meets the highest quality and design requirements, making it suitable even for luxurious interiors.
Available from Pacific GSM on pacificgsm.com as a genuine Jablotron 100 / 100+ product.
Key features
- The detector has impulse activation.
- The detector can be used to control programmable PG outputs.
- The resistance to false alarms is adjustable at two levels.
- The detector provides standard resistance to white light at the level prescribed by the standard (up to 6000 lux).
- The detector is addressable and it occupies one position in the system.
Ideal for
Homes and small commercial sites
Choose the JA-112P-AN when you need reliable Jablotron 100 coverage and straightforward integration with panels and peripherals stocked by Pacific GSM.
Documentation
The English installation manual is available under Downloads on this product page when supplied by Jablotron.
