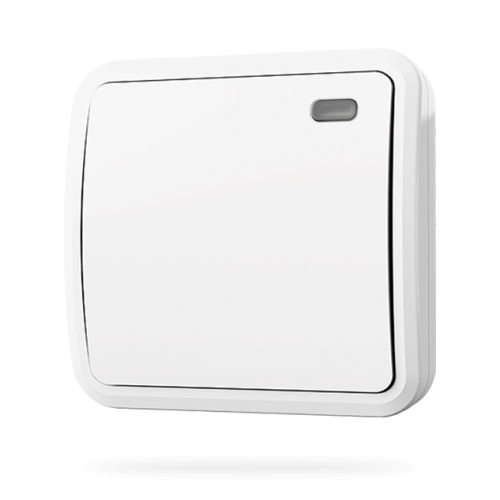

JA-112J Bus emergency/control wall-mounted button
- Product Code: JA-112J
- Availability: In Stock
| Power | from the control panel digital BUS 12 V (9 - 15V) |
|---|---|
| Current consumption in standby mode | 5 mA |
| Current consumption for cable choice | 5 mA |
| Dimensions, weight | 80 x 80 x 29 mm, 60g |
| Operational environment according to EN | II. Indoor general 50131-1 |
| Operation temperature range | -10 °C to + 40 °C |
| Complies with | EN 50130-4, EN 55022, EN 50581 |
Overview
The JA-112J bus wall-mounted button is designed to release an emergency alarm or to control PG outputs.
Available from Pacific GSM on pacificgsm.com as a genuine Jablotron 100 / 100+ product.
Key features
- Designed for the Jablotron 100 / 100+ bus or wireless ecosystem
- Official Jablotron part code JA-112J
Ideal for
Homes and small commercial sites
Choose the JA-112J when you need reliable Jablotron 100 coverage and straightforward integration with panels and peripherals stocked by Pacific GSM.
Documentation
The English installation manual is available under Downloads on this product page when supplied by Jablotron.
