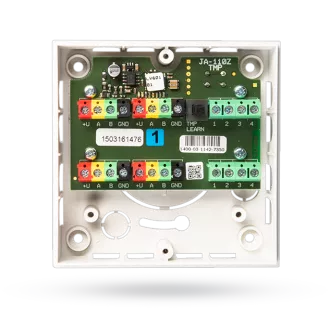

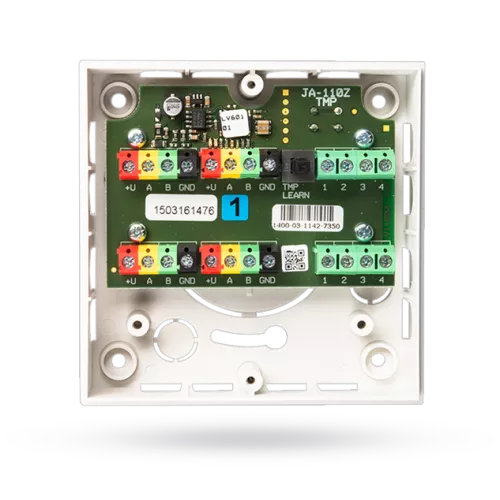

JA-110Z Addressable bus terminal module
- Brand::Jablotron
- Product Code: JA-110Z
- Availability: In Stock
| Power | from the control panel BUS 12 V (9 … 15 V) |
|---|---|
| Current consumption (in standby mode) | 5 mA |
| Current consumption (for cable choice) | 5 mA + connected detectors |
| Dimensions | 76 x 54 x 30 mm |
| Classification | according to EN 50131-1, EN 50131-3 Grade II |
| Operational environment according to EN | II. Indoor general 50131-1 |
| Operational temperature range | -10 °C to + 40 °C |
| Comply with | EN 50130-4, EN 55022 |
Overview
The JA-110Z — the product is designed for branching the bus of the Jablotron 100+ system. It is protected from being attacked by a pair of tamper contacts. It is supplied in a suitable JA-190PL mounting box.
Available from Pacific GSM on pacificgsm.com as a genuine Jablotron 100 / 100+ product.
Key features
- Designed for the Jablotron 100 / 100+ bus or wireless ecosystem
- Official Jablotron part code JA-110Z
Ideal for
Homes and small commercial sites
Choose the JA-110Z when you need reliable Jablotron 100 coverage and straightforward integration with panels and peripherals stocked by Pacific GSM.
Documentation
The English installation manual is available under Downloads on this product page when supplied by Jablotron.
