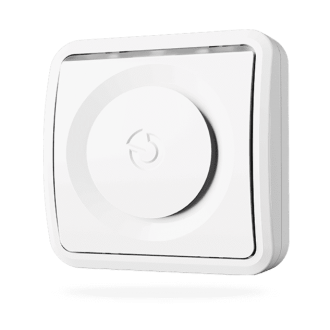

JA-110A II Bus internal siren with battery back-up
- Brand::Jablotron
- Product Code: JA-110A II
- Availability: In Stock
| Power supply | 12 V DC (9…15 V), from the BUS |
|---|---|
| Optional back up battery | BAT-3V2-CR2 (400 mAh) |
| Current consumption in standby mode | 5 mA (quiescent) |
| Current consumption for cable choice | 120 mA (maximal) |
| Type of warning device | type Z/12hr back-up |
| Siren | piezo-electric, 100 dB/m (±5 dB/m) |
| Dimensions | 80 x 80 x 35 mm |
| Weight (with battery) | 92 g |
| Classification | 1) |
| Environment | Indoor general |
| Operating temperature range | -10 °C to +40 °C |
| Average operating humidity | 75 % RH, without condensation |
| Complies with | EN 50581 |
| Certification body | Trezor Test s.r.o. (no. 3025) |
Overview
The JA-110A II — the JA-110A bus siren is for indoor use and is designed to sound alarms, as well as entrance and exit delays and PG activations in the security system.
Available from Pacific GSM on pacificgsm.com as a genuine Jablotron 100 / 100+ product.
Key features
- The siren button is equipped with programmable reactions.
- It offers an alarm verification feature. The siren communicates with and is powered by the bus
- Addressable and occupies one position in the alarm system
Ideal for
Homes and small commercial sites
Choose the JA-110A II when you need reliable Jablotron 100 coverage and straightforward integration with panels and peripherals stocked by Pacific GSM.
Documentation
The English installation manual is available under Downloads on this product page when supplied by Jablotron.
