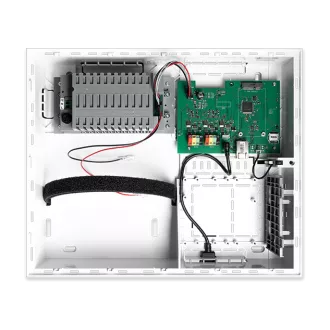

JA-108K Control panel with LAN communicator

Overview

The JA-108K is the most powerful control panel in the Jablotron 100+ system, designed for large-scale and high-security installations. As the first JABLOTRON control panel to support Grade 3 security (according to EN 50131), it is suitable not only for offices, schools and administrative buildings, but also for higher-risk premises such as server rooms, pharmaceutical storage facilities, galleries and jewellery stores.

Available from Pacific GSM on pacificgsm.com as a genuine Jablotron 100 / 100+ product.

Key features

• support for up to 230 peripherals and 15 sections,
• up to 600 users and 128 programmable PG outputs,
• integrated LAN communicator,
• support for MyJABLOTRON 2 and MyCOMPANY applications,
• power supply with continuous BUS output up to 2,000 mA,
• backup operation for up to 60 hours with an 18 Ah battery,
• configuration and servicing via USB-C,
• support for both Grade 2 and Grade 3 security profiles.

Ideal for

Homes and small commercial sites

Choose the JA-108K when you need reliable Jablotron 100 coverage and straightforward integration with panels and peripherals stocked by Pacific GSM.

Documentation

The English installation manual is available under Downloads on this product page when supplied by Jablotron.
