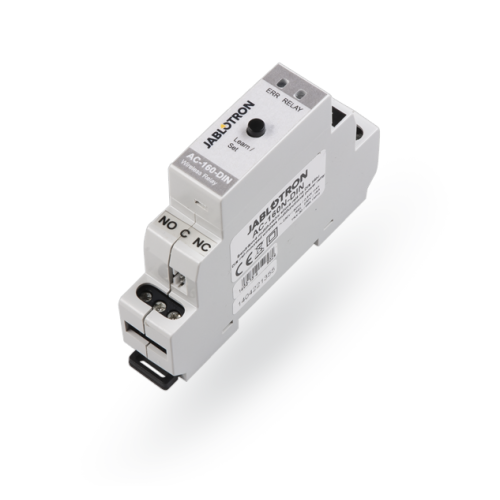

AC-160-DIN Wireless multifunctional relay for DIN-rail installation

AC-160-DIN Wireless multifunctional relay for DIN-rail installation

  • Brand::Jablotron
  • Product Code: AC-160-DIN
  • Availability: In Stock
This product is a component of the JABLOTRON 100 system, but it can be equally installed as a stand-alone device without a link to a control panel.

Power supply~ 230 V / 50 Hz, protective class II.
Internal power consumption0.4 W / max. 1.5 W
Loading capacity of the power relay contacts:
(galvanically isolated from the control terminals)protection class II:
   Max. switched voltage250 V AC / 24 V DC
   Resistance load (cosφ=1)max. 16 A
   Inductive, capacitive loads (cosφ=0.4)max. 8 A
   Halogen lightingmax. 1000 W
   Minimum switched DC power0.5 W
Wire cross sectionmax. 2 x 1.5 mm2; max. 1 x 2.5 mm2
Dimensions18 x 90 x 65 mm, 1 DIN module
Environment according toII. indoor, general, in accordance with EN 50131-1
Operating temperature range-10 to +40 °C
Ingress protection classIP20, IP40 for the front panel (EN 60529)
In conformity withETSI EN 300 220-1, EN 60950-1, EN 60947-6-1, EN 50581.

The wireless multi functional relay AC-160-DIN provides a switching contact relay with galvanic and safety isolation for switching 230 V/16 A power loads.

The relay can respond to the status of control panel PG outputs or to the activation of devices of the JA-15x series with unidirectional communication, enrolled directly to the relay.

The response can be selected from five modes – the default NATURAL function (extended copy), IMPULSE, STATUS CHANGE, SWITCH OFF and BLOCK. The relay also has a button for a direct manual status change. It allows you to update the firmware via a USB port. It is designed to be mounted on a DIN rail.

The relay module is addressable and occupies one position in the system.
