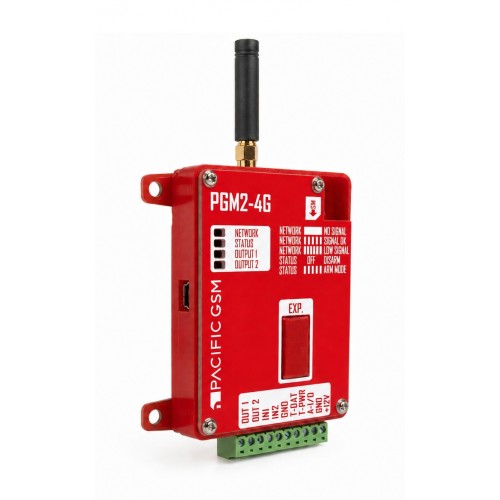

PGM2-4G-controller

PGM2-4G-controller

GSM LTE 4G Communicators - PGM2-4G

  • Brand::Pacific GSM
  • Product Code: PGM2-4G
  • Availability: In Stock
Available Options

Frequently asked questions

How many phone numbers can control the PGM2-4G?

Up to 10. The first number is saved when you call the SIM number in the unit. You can add more by SMS command or with the free PC software.

How do I set it up?

Connect the aerial first, then the SIM card and power. Set it up with the free PC software over the included USB cable, or by SMS. Every SMS command starts with the 4-digit password, for example "1234 status". The default password is 1234, so change it during setup.

Can it monitor temperature?

Yes. It has an input for a digital temperature probe with up to 5 m of cable and a range of -55°C to 125°C. It can send an SMS when the temperature goes above or below your limits, and it can switch an output as a thermostat. The probe is sold separately (TS-5).

Can I add more inputs and outputs?

Yes. The PGM2-EX1 expander plugs into the expander connector and gives you 4 inputs and 4 outputs in total. The same connector also takes other add-on modules, such as relays or an LCD.

What power supply does the PGM2-4G need?

It runs on 5 to 15V DC, so a 12V power supply or battery is fine. On a 24V supply, fit a 24V to 12V converter. It can also report the supply or battery voltage by SMS.


Power supply5V DC- 15V DC
Power consumptionapprox 20 mA 12V , max. 1000mA 12V
Frequency bands

Global Coverage

LTE (4G) B1/B2/B3/B4/B5/B7/B8/B12/B13/B17/B18/B19/B20/B25/B26/B28/B34/B38/B39/B40/B41/B66

Input 1-2
activated by GND connection or disconnection
Output 1-2
transistor open collector with load max 100 mA 12V
Output switching time in impulse modeadjustable from 1s to 24 h with an increment of 1 s
Expander
Expander for additional modules inputs, outputs, relays, LCD etc.
Input for temperature sensormax. connection length 5 m, measurement range -55 �C to 125 �C
Operating temperature range-20 to +50 �C
Ingress protection classIP20
Dimensions (without the antenna)93 x 61 x 20 mm
In conformity withEN 55032:2015 Class B, EN 55024:2010, EN 61000-4-2:2008, Performance Criterion B, EN 61000-4-3:2006, Performance Criterion A, EN 61000-4-4:2013, Performance Criterion B, EN 61000-4-6:2014, Performance Criterion A, AS/CA S042-2015


4G LTE SMS and IoT control


The PGM2-4G LTE communicator / SMS Controller is a multi function communication device for wide range of IoT applications.


PGM2-4G have two option for mounting DIN or screw for quick installation in any situation.


Remote control, alerts and monitoring

PGM2-4G controller is equipped with expander connector for additional modules such as inputs/outputs/relay/LCD etc.


Through PGM2-4G SMS communicator can be remotely controlled device such us PLC,  garage door, gates, controllers etc and may indicate a malfunction Alarms or loss of liquid in tanks, emergency conditions, or simply using a suitable sensor to watch object or temperature limits with thermostat function.

PGM2-4G can monitor power voltage in battery or solar application

All easily through standard mobile phone.


Configuration via USB or SMS

The USB-PC connection allows you to edit text (commands), function, name etc. to maximum adaptation to your application via free software. All setting can also be programmed via SMS commands.



Key features

– Two universal inputs with adjustable reaction to change, connection or disconnection of the loop.
– Inputs can be named (SMS text).
– Each input can send 2 different TXT for remote status equipment's
– Inputs can be use for arming/disarming the communicator from remote device
– Inputs regime arm/disarm or 24h. lop
– Input for digital temperature sensor with automatic output control (thermostat).
– Information SMS in case of exceeding the set temperature or the temperature drops below the set limit.
– 2 outputs with multiple configuration options. Activation via TXT or call with timer option, siren, arm mode indication etc.
– Device Status, you can always check the status via SMS.


Package includes

  • PGM2-4G
  • Aerial
  • USB cable
  • Manual

Networks and availability


The PGM2-4G controller works on 4G LTE mobile networks


Also available at your local electrical wholesalers
