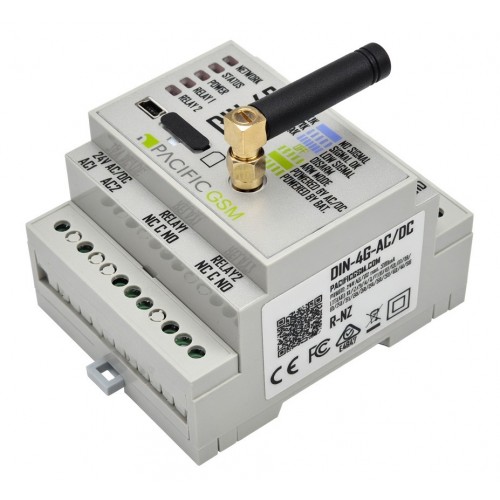

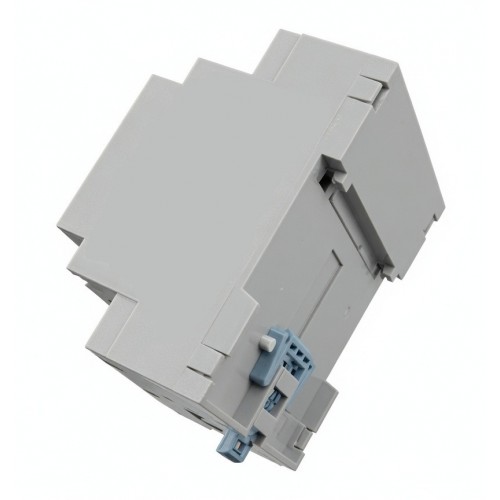

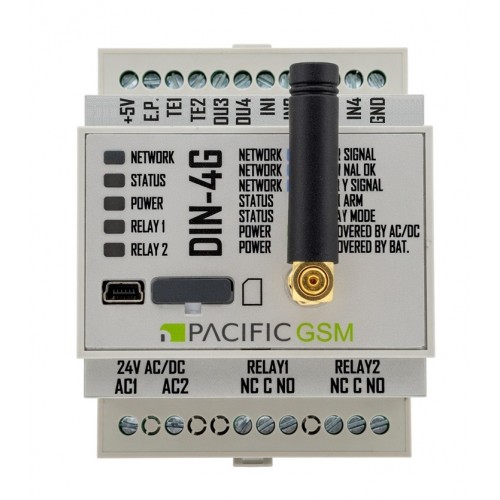

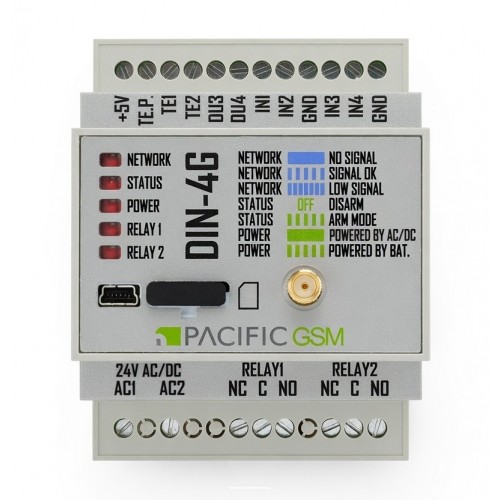

DIN-4G-DC LTE SMS Controller 12-24V AC/DC

DIN-4G-DC LTE SMS Controller 12-24V AC/DC

GSM LTE 4G Communicators - DIN-4G-DC

  • Brand::Pacific GSM
  • Product Code: DIN-4G-DC
  • Availability: In Stock

Frequently asked questions

What is the difference between the DIN-4G-DC and the DIN-4G-AC?

They have the same features: four inputs, two 5A relays, two temperature inputs, battery backup and up to 10 phone numbers. The DIN-4G-DC runs on 12 to 24V AC or DC. The DIN-4G-AC runs on 100 to 250V AC mains.

Can the relays switch mains loads?

Yes. The two NO/NC relays are rated 5A at 250V AC, even though the unit itself runs on 12 to 24V.

Does it keep working if the power supply drops out?

Yes. An internal Li-ion battery (3.7V, 1100mAh) keeps it running for about 3 hours. The power LED flashes slowly while it runs on battery, and it can send an SMS when the main power is lost.

Can I install it outdoors?

It is made for indoor use (IP20). Outdoors, fit it inside an enclosure with the right IP rating.




Power supply12-24V AC/DC
Power consumptionapprox 100mA, relays on, battery charging and 4G module transmits max. 500mA
Frequency bandsLTE (4G) B1/B2/B3/B4/B5/B7/B8/B12/B13/B17/B18/B19/B20/B25/B26/B28/B34/B38/B39/B40/B41/B66

Input 1,2,3,4activated by GND connection or disconnection
Output 1,2
NO/NC Relay, Max load 5 A / 250 V AC
Output 3,4
transistor open collector for relay with max load 100 mA
Temperature sensor input 1,2
max. connection length 5 m, measurement range -55 �C to 125 �C
Back up battery
Li-ion 3.7V/1100mAh
Typical backup time
3 hours
Operating temperature range-20 to +50 �C
Ingress protection classIP20
Dimensions (without the antenna)91 x 72 x 58 mm
In conformity withEN 55032:2015 + A1:2020, class B
EN 55035:2017 + A11:2020
EN 61000-3-2:2014
EN 61000-3-3:2013
EN 61000-4-2:2009 � criterion A
EN IEC 61000-4-3:2020 � criterion A
EN 61000-4-4:2012 � criterion A
EN 61000-4-5:2014 + A1:2017 � criterion A
EN 61000-4-6:2014 � criterion A
EN IEC 61000-4-11:2020 � criterion A, B
EN IEC 62368-1: 2020 + A11: 2020

The most powerful 4G industrial low Voltage SMS controller on the market with battery back up and wide programming options.

4G IoT Controller – 12-24V AC/DC LTE Communicator & Relay Switch with Battery Backup


Upgrade your remote monitoring and control with the 4G IoT Controller, a powerful and versatile LTE communicator designed for seamless automation and reliability.

Operating on 12-24V AC/DC power supply, this advanced device ensures your systems stay connected and functional, even during power outages, thanks to its built-in battery backup.


Perfect for a wide range of applications, this controller allows you to remotely manage electrical circuits'such as lighting, pumps, gates, or machinery'via a mobile phone over 4G LTE network.

With its dual high-power 250V/5A relay outputs, you can effortlessly switch devices on or off with a simple SMS command or phone call.

Beyond control, it excels at real-time monitoring, instantly reporting faults, emergencies, or status changes (e.g., power loss, liquid levels, or temperature shifts) directly to your phone.


Equipped with four universal inputs, this communicator supports a variety of sensors, making it ideal for monitoring in any industry, irrigation, plant maintenance, or temperature regulation with thermostat functionality.

Setup is a breeze'store up to ten authorized phone numbers for alerts and control, and customize commands via free USB-PC software or SMS programming.


Engineered for durability and performance, the 4G IoT Controller is your all-in-one solution for smart, reliable, and remote management'anytime, anywhere.

Key Features:


  • Operates on 4G LTE networks with 12-24V AC/DC power supply
  • Built-in battery backup for uninterrupted performance ( power outage notification)
  • Two 250V/5A NO/NC relay outputs for remote switching  (custom commands option for switching)
  • Four universal inputs for sensor integration  ( NO/NC or status change)
  • Two temperature inputs for temperatures probe ( custom temperature limits setting and notification)
  • SMS and call-based control and alerts (up to 10 numbers)
  • Multi point control (controllers can text each other)
  • Easy setup and customization via USB programming or SMS
  • Ideal for automation, monitoring, and status conditions
  • industrial-grade design



Take control of your projects with confidence'order your 4G IoT Controller today!


The DIN-4G controller is compatible with any mobile network provider worldwide
