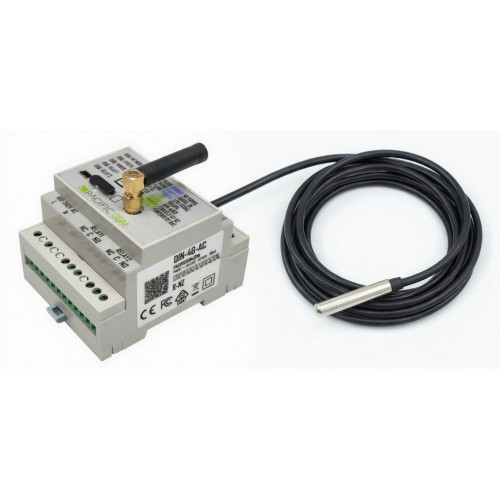

4G LTE Temperature monitoring thermostat 230V

4G LTE Temperature monitoring thermostat 230V

Ready made temperature kits - DIN-4G-TA

  • Brand::Pacific GSM
  • Product Code: DIN-4G-TA
  • Availability: In Stock

Frequently asked questions

What does the DIN-4G-TA do?

It monitors temperature over the 4G network and sends an SMS when it goes above or below your HI and LOW limits. You set the limits anywhere from -55°C to 125°C.

Is a temperature probe included?

Yes. An external digital temperature probe with a 5 m lead comes in the box, with the aerial, USB cable and manual.

Can I get regular temperature reports?

Yes. You can check the current temperature any time by SMS, or get an automatic SMS at a set time every day or week.

What happens if the mains power fails?

An internal 1100mAh Li-ion battery keeps it working, and you know within seconds when the 230V mains power is cut.

How many people can get alerts?

Up to 25 phone numbers can get SMS or call alerts.

Power supply100 - 250 V AC / 50/60 Hz, device of protective class II.
Power consumptionapprox 5mA, relays on, battery charging and 4G module transmits max. 40mA
Frequency bandsLTE (4G) B1/B3/B5/B8/B28 (2100/1800/850/900/700 MHz)

Input 1,2,3,4activated by GND connection or disconnection
Output 1,2
NO/NC Relay, Max load 5 A / 250 V AC
Output 3,4
transistor open collector for relay with max load 100 mA
Temperature sensor input 1,2
max. connection length 5 m, measurement range -55 �C to 125 �C
Back up battery
Li-ion 3.7V/1100mAh
Typical backup time
3 hours
Operating temperature range-20 to +50 �C
Ingress protection classIP20
Dimensions (without the antenna)91 x 72 x 58 mm
In conformity withEN 55032 A1,EN 55035 A1,EN 61000-3-2,3-3,4-2,4-3,4-4,4-5,4-6,4-11,EN 60950-1,AS/NZS 60950.1:2015

Any temperature and power supply can be quickly and easily monitored through 4G LTE network.

Receive SMS if temperature to high or to low.

Set your own HI and LOW limits from range - 55°C to 125°C

Check any time current temperature or receive automatic SMS on pre set time every day or week.

If main power cut you will know within seconds

All easily through standard mobile phone

Furthermore, the protocol allows you to edit text (commands), to maximum adaptation to your application. The programming can be done via USB-PC software or SMS commands.

Internal Li-ion battery ensures the operation of the communicator if the failure of the mains voltage 230V


Up to 25 telephone numbers for TXT or call alerts


External digital temperature sensor/probe 5 meters long lead include

Package include:
DIN-4G
Aerial
Temperature probe
USB cable
Manual



Also available from New Zealand electrical wholesalers: Powerbase, Ideal Electrical, J.A. Russell, Radcliffe Electrical, Redpaths, Corys Electrical, Telfer Electrical and PoweRun.
