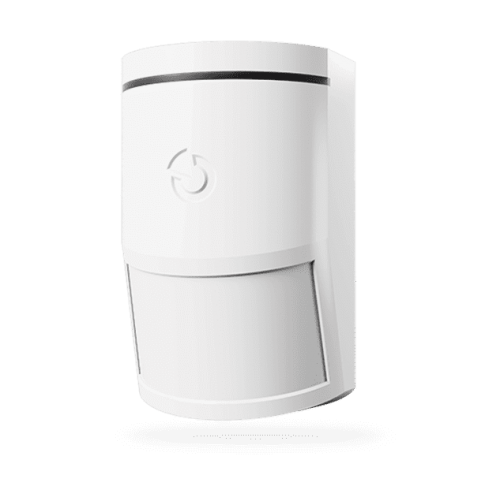

JA-110P PET Bus PIR motion detector with basic pet immunity
- Product Code: JA-110P PET
- Availability: In Stock
| Power | from the control panel BUS 12 V (9 ... 15 V) |
|---|---|
| Current consumption in standby mode | 5 mA |
| Current consumption for cable choice | 10 mA (maximum) |
| Recommended installation height | 2 m above the floor |
| Detection angle/detection coverage | 90°/12 m |
| Detection angle/detection coverage – pet | 90°/7 m immunity |
| Dimensions | 60 x 95 x 55 mm |
| Weight | 75 g |
| Classification | Grade 2/II. indoor general (According to EN 50131-1) |
| Operational environment | Indoor general |
| Operational temperature range | -10 °C to +40 °C |
| Average operational humidity | 75 % RH, non-condensing |
| Certification body | Trezor Test s.r.o. (no. 3025) |
| Also complies with | 2+A1, EN 55032, EN 50581 |
Overview
The JA-110P PET — the product is a bus system device for the Jablotron 100+. It is built to detect human body motion inside buildings. Compared to standard PIR motion detectors from the Jablotron 100+ series, its detection characteristics are modified and have a basic immunity to animals.
Available from Pacific GSM on pacificgsm.com as a genuine Jablotron 100 / 100+ product.
Key features
- The detector has a pulse response and occupies one position in the system.
- The JS-7910 lens is only used for the standard immunity level.
- The detector comes fitted with a JS-7910 animal lens with a 90/12 m angle.
Ideal for
Homes and small commercial sites
Choose the JA-110P PET when you need reliable Jablotron 100 coverage and straightforward integration with panels and peripherals stocked by Pacific GSM.
Documentation
The English installation manual is available under Downloads on this product page when supplied by Jablotron.
