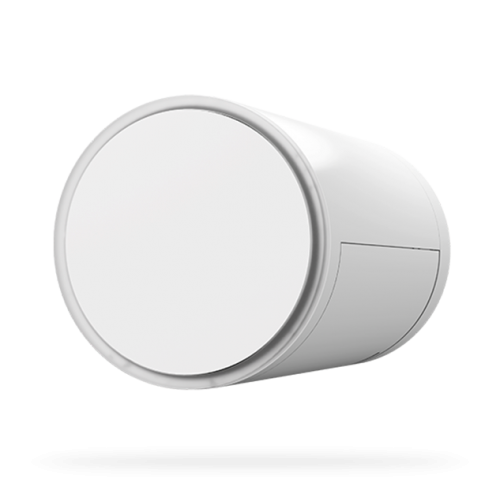

JB-150N-HEAD Wireless thermostatic head
- Product Code: JB-150N-HEAD
- Availability: In Stock
| Power | 3 x Alkaline batteries type AA (LR6) 1.5 V Warning: batteries are not included |
| Current consumption (nominal/maximum) | 0.025/550 mA |
| Maximum radio-frequency power (ERP) | 2.5 mW |
| Protection rating (IP) | IP40 |
| Limit values of the switchgear | T60 |
| Typical battery lifetime | approximately 2 heating seasons (10 cycles/day) (1 heating season of 10 cycles/day - when using a Giacomini valve) |
| Communication band | 868.1 MHz, JABLOTRON protocol |
| Communication range | approx. 300 m (open area) |
| Dimensions | 85 x 49 mm |
| Weight | 105 g |
| Operating temperature range | 0 °C to + 40 °C RV 75% non-condensing |
| Complies with | ETSI EN 300 220-1, EN 50130-4, EN 55022, EN 60950-1, EN 60730-1 ed.3, EN 607-2-8 |
| Can be operated according to | VO-R/10 (ERC REC 70-03) |
Overview
JB-150N-HEAD Wireless thermostatic head. It is used to control a radiator valve or floor heating. Buy from Pacific GSM in NZ.
Tags: JB-150N-HEAD, Jablotron 100, Jablotron 100+, Wireless thermostatic head, Modules, Output, device
