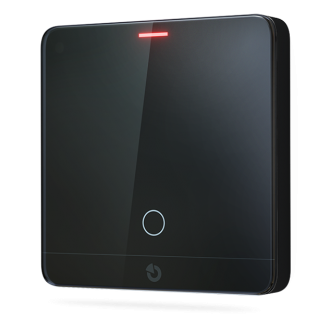

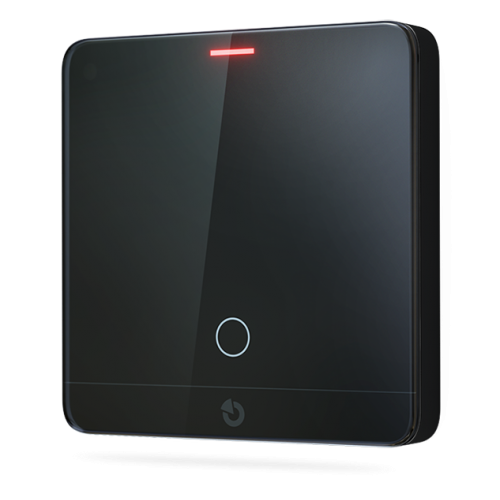

JB-111TH-AN Bus temperature and humidity sensor with thermostat function - anthracite
- Product Code: JB-111TH-AN
- Availability: In Stock
| Temperature measuring range with external sensor | -40 to+ 125 C° (± 0,2 °C) |
| Operating temperature range | -20 to +40 C° |
| Humidity measuring range | 0 to 100% |
| *Temperature controller class | I. (according to Regulation (EU) No 813/2013) |
| *Contribution of controllers to seasonal | È S = 1% (according to Regulation (EU) No 813/2013) *for both parameters in the control panel configuration |
| Power supply | from the control panel bus 12 V DC (10...15 V) |
| Rated current consumption | 5.2 mA |
| Maximum current draw | 22 mA |
| IP resistance | IP 31 |
| Dimensions | 82 x 82 x 22 mm |
| Weight | 82.9 g |
| Operating humidity | 75 % (non-condensing) |
| Environment | indoor general |
| Further complies with | EN 50130-4, EN 55032, EN IEC 63000 |
| Recommended screws | 2x ø 3,5 mm (hemispherical head) |
| Operating temperature | -20 to +40 C |
| Humidity range | 0 to 100% |
| Power supply | 12 V DC bus |
| Current | 5.2 mA nominal, 22 mA max |
| IP resistance | IP31 |
| Dimensions | 82 x 82 x 22 mm |
| Weight | 82.9 g |
Overview
JB-111TH-AN is an anthracite display-free thermostat sensor for Jablotron 100+ installations.
Key features
- 82 x 82 x 11/22 mm
- System bus powered
- Temperature and humidity sensing with thermostat function
- Anthracite finish
Certified installation recommended.
