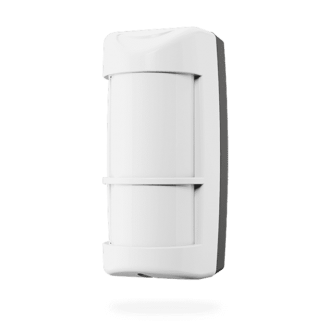

JA-169P Outdoor two-zone PIR motion detector
- Product Code: JA-169P
- Availability: In Stock
| Power supply | 1x lithium battery type CR123A (3.0 V / 1.4 Ah) |
| Battery service life | approx. 3 years |
| Maximum power consumption | 55 mA |
| Communication frequency | 868.1 MHz, JABLOTRON protocol |
| Maximum radio-frequency output (ERP) | 25 mW |
| Communication range | approx. 300 m |
| Environment | outdoor general |
| Ingress Protection Code | IP 45 |
| Operational temperature range | -25 °C to +60 °C |
| Dimensions | 189 x 81 x 98 mm |
| Weight (w/o battery) | 380 g |
| Detection characteristics | 15 m / 85°, 11 segments |
Overview
The detector is built to detect the movement of people in the outdoor environment. Available through Pacific GSM for New Zealand Jablotron 100+ projects.
The optical part of the detector contains two PIR sensors with AND logic.
An alarm signal will only occur if both detection zones are crossed simultaneously.
Key features
- Integrates with Jablotron 100+ control panels as a outdoor two-zone pir motion detector peripheral.
Ideal for / Compatibility
Suited to Jablotron 100+ installations needing a outdoor two-zone pir motion detector (Detectors, Motion).
Installation notes
Have a certified installer mount the device, enrol it in F-Link, and follow the English installation manual included with these assets.
