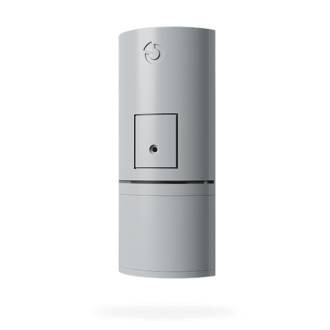

JA-162PB-GR Wireless combined PIR motion and glass-break detector - grey
- Product Code: JA-162PB-GR
- Availability: In Stock
| Power | 2x Lithium battery CR123A (3.0 V/1.5 Ah) Please note: Batteries are not included. |
| Typical battery lifetime | approx. 3 years |
| Low battery voltage | <2.7 V |
| Quiescent current consumption | 50 uA |
| Maximal current consumption | 50 mA |
| Communication band | 868.1 MHz, protocol JABLOTRON |
| Maximum radio-frequency power (ERP) | <25 mW |
| RF range | 500 m (open area) |
| Recommended installation height | 2.5 m above the floor |
| PIR detection angle/range | 90°/12 m |
| GBS detection angle/range | 90°/9 m |
| Dimensions | 150 x 63 x 40 mm |
| Weight (w/o batteries) | 135 g |
| Classification | Security grade 2/Environmental class II (according to EN 50131-1) |
| Environment | indoor general |
| Operating temperature range | -10 °C to +40 °C |
| Average operational humidity | 75% RH, w/o condensation |
| Certification body | Trezor Test s.r.o. (no. 3025) |
| In compliance with | ETSI EN 300 220-1,2, EN 50130-4, EN 55032, EN IEC 62368-1, EN IEC 63000, EN 50131-1, EN 50131-2-2, EN 50131-2-7-1, EN 50131-5-3, EN 50131-6 |
| Can be operated according to | ERC REC 70-03 |
| Recommended screw | 2 x o 3.5 x 40 mm (countersunk head) |
Overview
This device is a component of the Jablotron security system. Available through Pacific GSM for New Zealand Jablotron 100+ projects.
It is used for the detection of movement in building interiors and for the detection of breaking glass windows.
This detector combines two sensors (PIR motion & GBS acoustic) in one housing.
Key features
- The detector uses a Passive Infra-Red sensor for movement detection.
- Breaking glass is detected by a Glass Break sensor, which analyses air pressure changes and sounds to detect the breaking of a glass window.
- The detector should be installed by a trained technician with a valid certificate issued by an authorized distributor.
- This device is compatible with JA-103K, JA-107K, JA-102K control panel units and upper models.
Ideal for / Compatibility
Suited to Jablotron 100+ installations needing a wireless combined pir motion and glass-break detector - grey (Detectors, Combined and dual).
This device is compatible with JA-103K, JA-107K, JA-102K control panel units and upper models.
Installation notes
The detector should be installed by a trained technician with a valid certificate issued by an authorized distributor.
