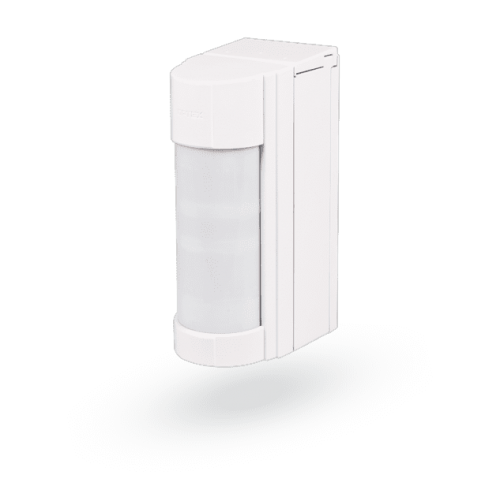

JA-159P Wireless outdoor PIR detector for Jablotron 100+ — Pacific GSM
- Product Code: JA-159P
- Availability: In Stock
| Power | 2x Lithium battery type CR123A (3.0 V/1.4 Ah) Please note: Batteries are not included |
| Current consumption (nominal/maximal) | 35.5 µA/55 mA |
| Average battery lifetime | 2 x CR123A, approx. 3 years |
| Communication band | 868.1 MHz |
| RF range – communication range | up to 300 m (open area) |
| Detection characteristics | 12 m/90 °; 16 segments |
| Recommended installation height | 0.8 – 1.2 m |
| Object motion speed | 0.3 – 1.5 ms -1 |
| Battery saving timer | adjustable 5 s or 120 s |
| Operational environment according to EN 50131-1 | IV |
| Security grade | according to Optex |
| Operating temperature range | -20 °C to +60 °C |
| Detector cover conformance | IP55 |
| Max. relative humidity of the environment | 95 % |
| Dimensions | 186 x 71.3 x 105.5 mm |
| Weight | 500 g |
| Complies with | ETSI EN 300 220, EN 50130-4, EN 55022, EN 60950-1 |
| Can be operated according to | ERC REC 70-03 |
Overview
The JA-159P is an outdoor intruder wireless detector built to detect human body movement in a protected area. Available through Pacific GSM for New Zealand Jablotron 100+ projects.
Key features
- It pairs a double-zone PIR sensor produced by Optex with a Jablotron transmitter enabling the detector to be used within the Jablotron 100+ system.
- Its optics include 2 PIR sensors and high immunity to false alarms and the detection of small animals.
- Included features cover an Anti-masking function – protection against covering the view and it also has two tampers (front and back) built in.
- They immediately report opening the detector or attempting tampering.
- A periodic self-test runs and reports status back to the panel.
- The detector should be installed by a certified Jablotron technician.
Ideal for / Compatibility
Suited to Jablotron 100+ installations needing a wireless outdoor pir detector (Detectors, Motion).
Installation notes
The detector should be installed by a trained technician with a valid certificate issued by an authorised distributor.
Included features cover an Anti-masking function – protection against covering the view and it also has two tampers (front and back) built in.
The detector does a self-test periodically and reports status back to the panel.
