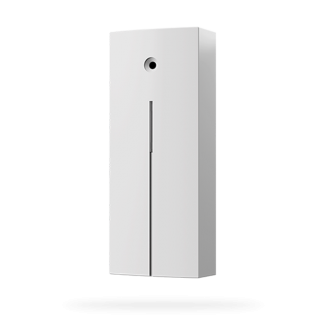

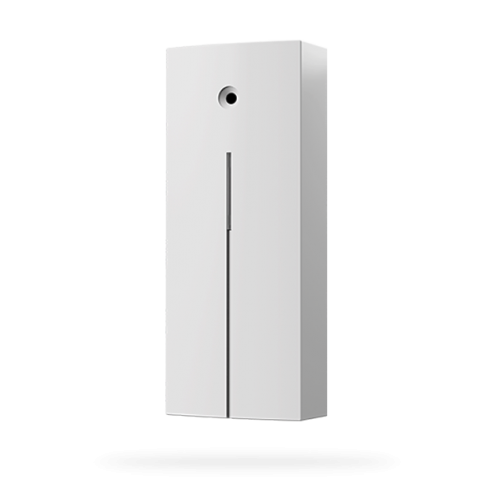

JA-110B Bus acoustic glass-break detector
- Product Code: JA-110B
- Availability: In Stock
| Power | from the control panel bus 12 V (9… 15 V) |
|---|---|
| Current consumption in standby mode | 5 mA |
| Current consumption for cable choice | 5 mA |
| Recommended installation height | 2.5 m above the floor |
| Detection distance | up to 9 m |
| Minimum window glass size | 0.6 x 0.6 m |
| Stabilization time after the switching on | max. 60 s |
| Dimensions | 40 x 100 x 22 mm |
| Classification | Grade II |
| according to | EN 50131-1, EN CLC/TS 50131-2-7-1 |
| Operational environment according to EN | II. Indoor general 50131-1 |
| Operating temperature range | -10 °C to +40 °C |
| Also complies with | EN 50130-4, EN 55022 |
Overview
The JA-110B is a bus glass-break detector which recognizes the sounds of smashing window panes. The detection is based on dual technology (detection of changes in air pressure combined with the sound of breaking glass).
Available from Pacific GSM on pacificgsm.com as a genuine Jablotron 100 / 100+ product.
Key features
- Designed for the Jablotron 100 / 100+ bus or wireless ecosystem
- Official Jablotron part code JA-110B
Ideal for
Homes and small commercial sites
Choose the JA-110B when you need reliable Jablotron 100 coverage and straightforward integration with panels and peripherals stocked by Pacific GSM.
Documentation
The English installation manual is available under Downloads on this product page when supplied by Jablotron.
Tags: JA-110B, glass-break detector, Jablotron 100
