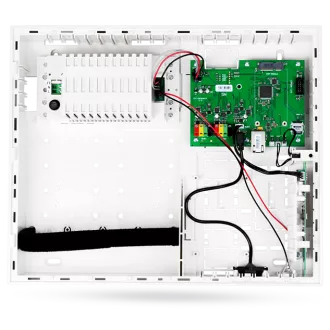

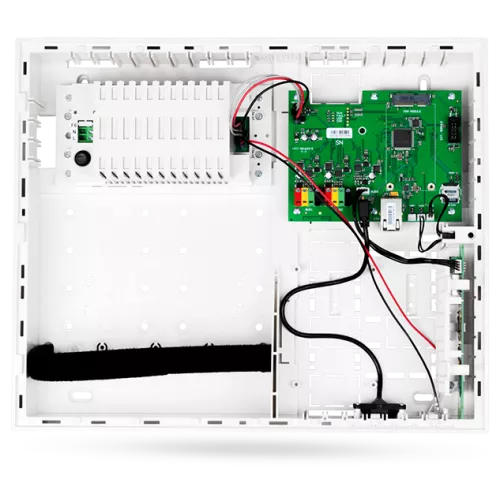

JA-107KR GSM Control panel with LAN and radio module

0 reviews Write a review

Product Code: JA-107KR
Availability: In Stock

Qty

Control panel power supply	F1.6 A/250 V, Protection class II
Back-up battery	12 V; 7 to 18 Ah (lead gel)
Maximum battery charging time	48 h
BUS voltage (red - black)	12.0 to 13.8 V
Maximum continuous current consumption	3000 mA for 60 minutes from the control panel (max. 2000 mA for one BUS)
Max. continuous current consumption for	Without GSM LAN – OFF: 1135 mA
back-up 12 hours	communicator LAN – ON: 1107 mA
LAN – OFF: 1100 mA	With GSM communicator LAN – ON: 1072 mA
back-up 24 hours	communicator LAN – ON: 499 mA
LAN – OFF: 530 mA	With GSM communicator LAN – ON: 494 mA

Maximum number of devices230LAN communicatorEthernet interface, 10/100BASEDimensions357 x 297 x 105 mmWeight with/without AKU7027 g/1809 gReaction to invalid code entryAlarm after 10 wrong code entriesEvent memoryApprox. 7 million latest events, including date and timeType A according to EN 50131-6T 031 note: In case of a main power failure is the systemPower supply unitbacked up for 24 hours and at the same time is a failure report sent to the ARC.GSM communicator (2G)850 / 900 / 1800 / 1900 MHzClassificationSecurity grade 2 according to EN 50131-1Operational environmentEnvironmental class II (indoor general) according to EN 50131-1

Overview

The JA-107KR — the JA-107K is an advanced version of the Jablotron 100+ security system. It is designed for large living spaces, offices and businesses. It can only be installed by a trained technician with a valid JABLOTRON a.s. certificate.

Available from Pacific GSM on pacificgsm.com as a genuine Jablotron 100 / 100+ product.

Key features

120 wireless and up to 230 bus devices
600 users
15 sections
128 programmable PG outputs
64 mutually independent calendar events
50 user SMS reports
15 user voice reports
5 ARCs can be set
5 selectable protocols for an ARC
2 mutually independent terminal boards for bus connection

Ideal for

Homes and small commercial sites

Choose the JA-107KR when you need reliable Jablotron 100 coverage and straightforward integration with panels and peripherals stocked by Pacific GSM.

Documentation

The English installation manual is available under Downloads on this product page when supplied by Jablotron.
