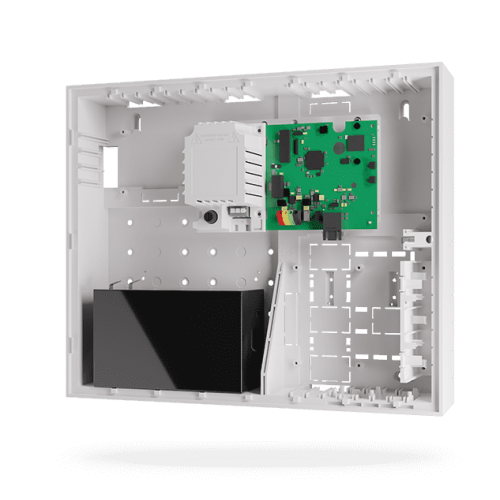

JA-103K-7AH GSM Control panel with LAN communicator - 7 Ah
- Product Code: JA-103K-7AH
- Availability: In Stock
| Control panel power supply | F1.6 A/250 V, |
|---|---|
| Back-up battery | 12 V; 7 Ah (lead gel) |
| Maximum battery charging time | 48 h |
| BUS voltage (red - black) | 12.0 to 13.8 V |
| Maximum continuous current consumption | 1000 mA from the control panel |
| Max. continuous current consumption for | LAN – OFF: 334 mA |
| Without GSM communicator | back-up 12 hours LAN – ON: 300 mA |
| Maximum number of devices | 50 |
| LAN communicator | Ethernet interface, 10/100BASE |
| Dimensions | 357 x 297 x 105 mm |
| Weight with/without AKU | 3755/ 1665 g |
| Reaction to invalid code entry | Alarm after 10 wrong code entries |
| Event memory | Approx. 7 million latest events, including date and time |
| Type A according to EN 50131-6 | T 031 note: In case of a main power failure is the system |
| Power supply unit | backed up for 24 hours and at the same time is a failure report sent to the ARC. |
| GSM communicator (2G) | 850 / 900 / 1800 / 1900 MHz |
| Classification | Security grade 2 according to EN 50131-1 |
| Operational environment | Environmental class II (indoor general) according to EN 50131-1 |
| Operational temperature range | -10 C to +40 °C |
| Average operational humidity | 75 % RH, non-condensing |
Tags: JA-103K-7AH, Jablotron 100, control panel
