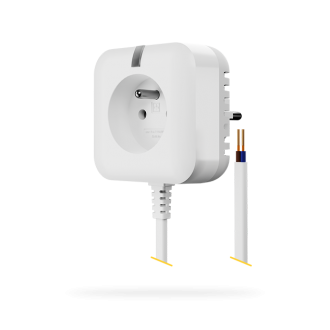

JB-162N-PLUG Wireless plug with external output (French)
- Product Code: JB-162N-PLUG
- Availability: In Stock
| Power supply | 110–250 V/50–60 Hz |
| Power consumption at 230 V AC (min/max) | 0.4 W/1 W |
| Communication band | 868.1 MHz, Jablotron protocol |
| Maximum radio-frequency power (ERP) | 25 mW |
| Antenna | internal |
| Plug contact loadability – class protection II + FE: | |
| - Maximum acceptable relay voltage | 250 V AC |
| - Resistive load (cos ? = 1) | max. 16 A |
| - Induction, capacitive load (cos ? = 0.4) | max. 8 A |
| External output maximum loadability | 250 V AC / 24 V DC / max. 1 A |
| Dimensions | 70 x 70 x 77.6 mm |
| Weight | 175 g |
| External output cable length | 2 m |
| Operating temperature range | -10 °C to + 40 °C |
| Average operating humidity | 75% RH, non-condensing |
| In compliance with | ETSI EN 300 220-1,2, EN 50130-4, EN 55032, EN 62368-1, EN IEC 6300 |
| Can be operated according to | ERC REC 70-03 |
Overview
JB-162N-PLUG Wireless plug with external output (French). Permanently powered French-type wireless pass-through plug with signal output. Buy from Pacific GSM in NZ.
Tags: JB-162N-PLUG, Jablotron 100+, Wireless plug with external output (French), Modules, Output, accessory
