| Power supply | 100 - 250 V AC / 50/60 Hz, device of protective class II. |
|---|---|
| Power consumption | approx 5mA, relays on, battery charging and 4G module transmits max. 40mA |
| Frequency bands | UMTS (3G) B1/B5/B8 (2100/850/900 MHz) LTE (4G) B1/B3/B5/B8/B28 (2100/1800/850/900/700 MHz) |
| Input 1,2,3,4 | activated by GND connection or disconnection |
| Output 1,2 | NO/NC Relay, Max load 5 A / 250 V AC |
| Output 3,4 | transistor open collector for relay with max load 100 mA |
| Temperature sensor input 1,2 | max. connection length 5 m, measurement range -55 °C to 125 °C |
| Back up battery | Li-ion 3.7V/550mAh |
| Typical backup time | 3 hours |
| Operating temperature range | -20 to +50 °C |
| Ingress protection class | IP20 |
| Dimensions (without the antenna) | 91 x 72 x 58 mm |
| In conformity with | EN 55032 A1,EN 55035 A1,EN 61000-3-2,3-3,4-2,4-3,4-4,4-5,4-6,4-11,EN 60950-1,AS/NZS 60950.1:2015 |
The most powerful 3G-4G controller on the market with battery back up and wide programming options.

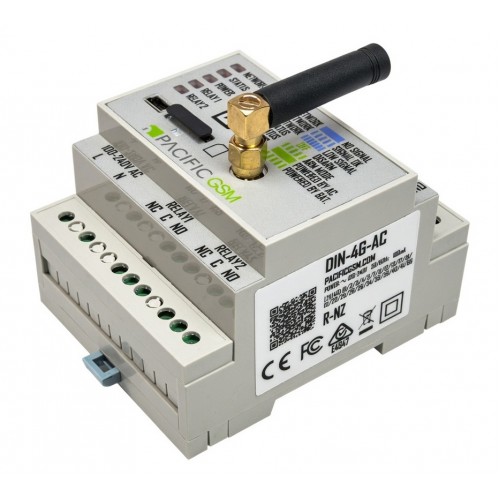

The DIN-4G controller operate in Australia on Telstra, Optus and Vodafone network
USB-PC software for programming
